Toufukuji Zendou 東福寺禅堂 (Kyouto)
(C)2001 Japanese Architecture and Art Net Users System. No reproduction or republication without written permission.
掲載のテキスト・写真・イラストなど、全てのコンテンツの無断複製・転載を禁じます。
|
||||||
| zendou 禅堂 | ||||||
|
||||||
|
||||||
|
||||||
|
||||||
| KEY WORD : architecture / buildings & structures | ||||||
|
||||||

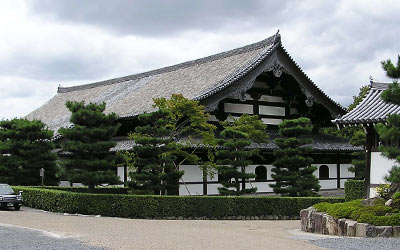

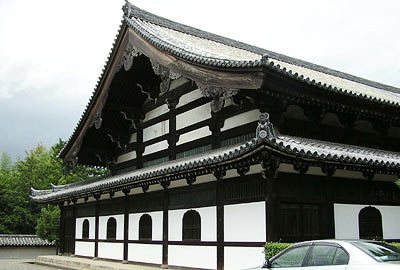

| Also called *soudou 僧堂; sometimes *masodou 媽姐堂 at Oubaku 黄檗 sect, temples. Other names are saisoudou 聖僧堂, undou 雲堂, and senbutsudou 選仏堂. A meditation hall that is divided into two parts, the inner and outer, and has an earthen floor. One of the main buildings within the precincts of a Zen 禅 temple. It is also where Zen monks received strict training, part of which was the practice of a meditation technique zazen 坐禅. The best example of Zendou and the only one designated as a important cultural property is at Toufukuji 東福寺 (1415) in Kyoto. It is a large, single-storied building. The main core *moya 母屋, is 7 ×4 bay (*ken 間) and is surrounded by a one-bay deep enclosure with a pent roof *mokoshi 裳階. Altogether the outer measurements are 42.08m long × 21.92m deep. The entrance vestibule is a later addition. The pillars of the mokoshi are smaller in diameter than the main ones that surround the moya. Six large pillars are erected through the center of the moya which has a gabled roof *kirizuma-zukuri 切妻造, and has double rainbow beams and bottle struts nijuukouryou taiheizuka 二重虹梁大瓶束, in the gable pediments. Built primarily in the Zen style *zenshuuyou 禅宗様, there is a flavor of the daibutsu style *daibutsuyou 大仏様, in the use of brackets arms *sashihijiki 挿肘木, inserted directly into the pillars on either side of the wide bay in the middle of the center line of pillars. The floor of the moya is paved with tiles set diagonally. The ceiling is boarded. Around the perimeter are low platforms zashou 坐牀, on which the monks sat. Below the upper edge of the mokoshi roof are low openings fitted with vertical lath, between the moya pillars at each end, and two bays from the corner pillars at the back and the front at each end. The lath allows light and air into the central core of the building. The windows in the mokoshi are the zen style ogee type and are called *katoumado 火灯窓. Just above these openings are low openings with vertical lath surrounding the entire mokoshi. Another example as Manpukuji Zendou 萬福寺禅堂 (1663) in Kyoto. | ||||||
Toufukuji Zendou 東福寺禅堂 (Kyouto)
|
||||||
|
||||||
|
||||||
| REFERENCES: | ||||||
|
||||||
|
||||||
|
||||||
| EXTERNAL LINKS: | ||||||
|
||||||
|
||||||
|
||||||
| NOTES: | ||||||
|
||||||
|
||||||
|
||||||
