| sodemarugawara 袖丸瓦 | ||||||
 |
||||||
|
||||||
|
||||||
|
||||||
| KEY WORD : architecture / roofing tiles | ||||||
|
||||||
| Also sodegawara 袖瓦, *tonemarugawara 利根丸瓦, tonegawara 利根瓦. Lit. cylindrical sleeve tile. A sleeve tile used the rear of the hanging tile *kakegawara 掛瓦 that is laid on a barge course *keraba 螻羽, drooping verge *minokou 箕甲 of a Japanese shrine or temple building. One side of the tile is longer than the other to compensate for the difference between the curve of the roof and the curve of the barge course. The tile also closes the gap that would otherwise exist, if ordinary semi-cylindrical tiles *marugawara 丸瓦 were used. It is not clear when the definitive shape for sleeve tiles evolved. Even at Himejijou 姫路城 (17c) in Hyougo prefecture, true sleeve tiles are not used. Instead one semi-cylindrical tile and a part of another *dakimarugawara 抱丸瓦 are joined to bridge the gap created by the change in level between the first concave roof tile *tonehiragawara 利根平瓦 and the second concave tile *hiragawara 平瓦. However, there is no doubt that sleeve tiles were in common use during the Edo period. | ||||||

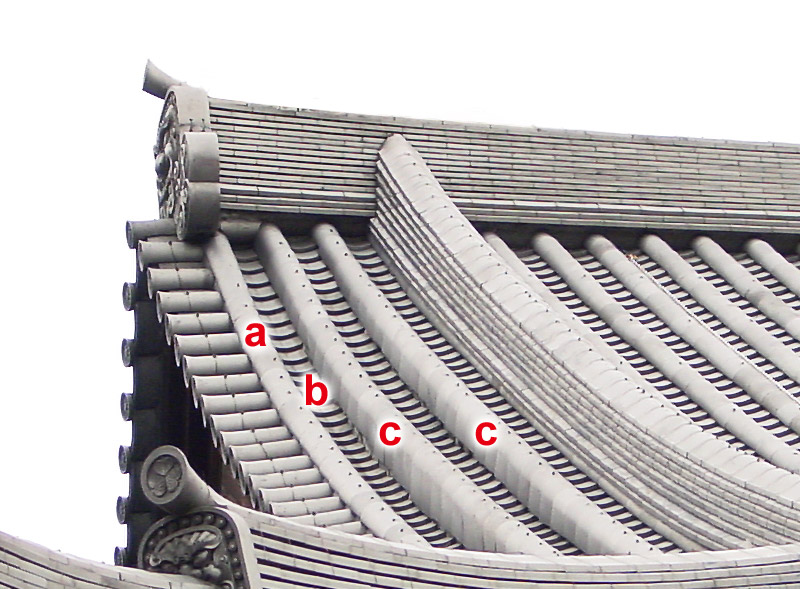

 a) *tonemarugawara
利根丸瓦 b) *tonehiragawara
利根平瓦 c) sodemarugawara 袖丸瓦
Zoujyouji Yasukuniden 増上寺安国殿 (Tokyo) |
||||||
|
||||||
|
||||||
