kenmenkihou 間面記法
KEY WORD : architecture / general terms

The method used to describe the plan of a traditional temple or shrine building. It included the number of lengthwise bays *ken 間 in the core *moya 母屋, plus the number of bays (usually 1-bay deep) in the aisles *hisashi 廂. Thus, a moya that is three bays lengthwise and is surrounded by hisashi on four sides would be stated as three bays, four sides; sanken yonmen 三間四面. If this moya is two bays deep, a modern description states only the exterior dimensions which in this case would be a 5x4 bays. The lengthwise number of bays precedes the transverse number. The traditional method does not give the dimensions of a building clearly because the width of bays can vary greatly. The kenmenkihou method is limited because it does not include depth when describing a floor plan. Also, should an additional bay *magobisashi 孫廂 be added to the front hisashi, there would be no way to indicate this using the kenmenkihou method because the added bay is outside the moya and hisashi. It is thought that this method of describing a floor plan became standard in the Heian period, when a regulation prescribed that the moya be two bays deep. With the introduction of western architecture in the late 19c, the kenmenkihou method could not be applied to reinforced concrete buildings. For repair or reconstruction of traditional timber buildings the old method of describing the number of bays was gradually replaced by the metric system. Table of linear measurement equivalents.

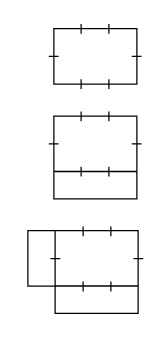

sanken ichimen
三間一面
sanken nimen
三間二面

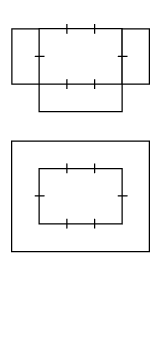

sanken sanmen
三間三面
sanken yonmen
三間四面
