1 Sashikamoi or sashigamoi 指鴨居, also written 差鴨居 are frequently used in vernacular houses in regions with heavy snow. The heavy lintels are 21cm - 60cm high, significantly greater than the usual 6cm of a kamoi. It serves not only as a track for sliding doors but as a structural member as well. Because of its size, it is impossible to insert the ends into the posts or pillars. Therefore, tenons are added to the ends of the sashikamoi and inserted into mortises made in the posts. The blind, wedged, angle joint *jigokuhozo 地獄ほぞ is commonly used. This method is called hozosashi ほぞ差; sashihozo 差ほぞ; sashimono 差物.
2 *Usugamoi 薄鴨居 are used for a transom *ranma 欄間 and in tea ceremony house *chashitsu 茶室 and are therefore smaller other usual.
3 Hitosuji gamoi 一筋鴨居 is used in tea ceremony houses *chashitsu 茶室 and has only a single channel.
4 Mume gamoi or *mume 無目 is similar to a lintel in that it has neither a track added nor a groove cut.
5 Tsukegamoi 付鴨居, also pronounced tsukekamoi, meaning attached kamoi; sometimes called yosetsuke kamoi 寄付鴨居, is an ornamental timber attached to the surface of the wall between two visible posts and adjacent to an opening for a window, for example, at the same height as the kamoi. The older style head jamb was made by making channels on a strip of timber and nailing it to the lintel. Later the channels were cut directly into the head jamb with a chisel and plane.

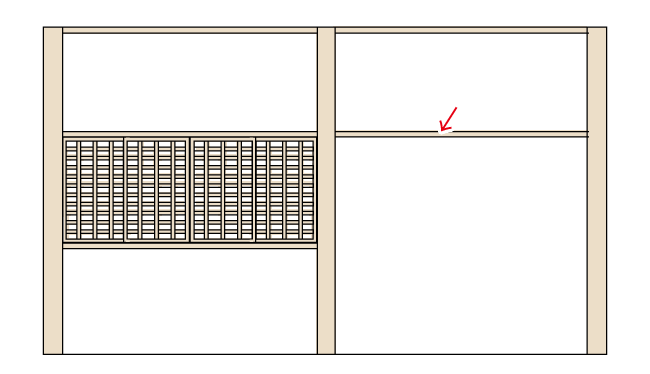

6 Nakakamoi 中鴨居 is a lintel placed between the sill *shikii 敷居 and the top lintel, kamoi. See *nakashikii 中敷居.

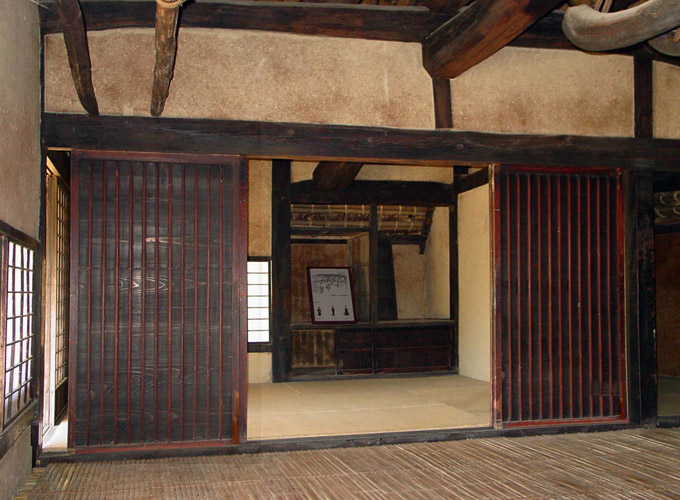

| sashikamoi 指鴨居 |
 Old Honda 本田 house (Nagasaki) |
| tsukegamoi 付鴨居 |
 |
