ishigaki@ΞŠ_
KEY WORD :@architecture / castles
@

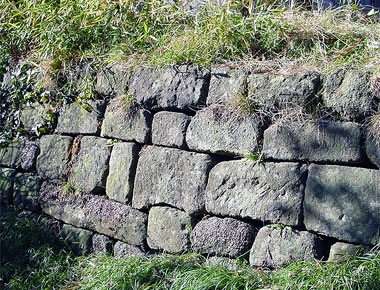

A dry stone wall. A retaining stone foundation wall built without binding materials over an inclined earthen embankment. Originally intended to hold a castle embankment in place, the embankment and stone wall together were expected to provide a solid foundation for timber superstructures. When gates, towers and walls came to be built on the embankment, the ishigaki took on a multitude of functions, forming the base and sides of the gates and towers themselves, as well as the foundations for the donjon and moat. The most frequently used stone for castle walls was andesite anzangan ˆΐŽRŠβ, granite kakougan ‰Τ›ΌŠβ, quartz porphyry sekieihangan Ξ‰p”ΑŠβAand gneiss henmagan •Π–ƒŠβ. Andesite and granite are easy stones to work, and were widely used in Edo period castles. The best stones for castle walls are considered to be shaped like a short square pillar, roughly two to three times as high as their base length. This type of stone is known as hikae T‚¦. The length of a stone is called *ishi-no-hikae Ξ‚̍T‚¦, and the width of the rock face visible on the wall surface is called ishizura Ξ–Κ or tsura –Κ. A distinction is made between corner stones *sumi-ishi ‹χΞ and those not at corners *hira-ishi •½Ξ. The stones are often named according to their shapes or the way they have been cut. For example a stone narrowing at one end is called kenchi-ishi ŠΤ’mΞ, a cobble stone *tama-ishi ‹ΚΞ, a chestnut stone used to fill small gaps *kuri-ishi ŒIΞ, hewn stone kiri-ishi ΨΞ, and rough stone *no-ishi –μΞ. There are a variety of building styles depending on the degree to which the stones are cut and prepared. Some of these styles, in order from the least worked to the most worked stones, are random masonry *ransekizumi —ΞΟ, burdock masonry *gobouzumi ‹δξΟ, natural face masonry *nozurazumi –μ–ʐΟ, pounded and inserted masonry *uchikomihagi ‘ōž”Š‚¬, cloth construction *nunozuki •z’z, cut inserted masonry *kirikomihagi Ψž”Š‚¬ and tortoise shell stack *kikkouzumi ‹TbΟ. Another method of construction, sangizumi ŽZ–ؐΟ, uses wooden logs to stabilize the stones. Generally the surface stones of the wall are laid over a base of progressively smaller stones, pebbles, sand and earth to provide greater stability. In wet areas, the foot of the wall rests on a base supported by wooden stanchions to prevent collapse. The angle of the wall's incline varies with the height of the wall: the greater the height, the less steep the incline. According to Ogyuu Sorai's ‰¬Άœhœq (1666-1728) KENROKU ϋ˜^ (1727), there are three main shapes of castle wall: 1 walls of 45 degree elevation, called narashi ‚Θ‚η‚΅, in which only the topmost stone is completely vertical; 2 walls with a 50 degree elevation and the top 20% vertical; and 3 walls with an incline of about 80 degrees. The wall slopes upwards in a concave curve, with the top 25% completely vertical. Type two are usually pounded and inserted walls uchikomihagi, while type three are cut and inserted masonry kirikomihagi. The slope of a stone wall is called ishigaki-no-koubai ΞŠ_‚ΜŒω”z or ishigaki koubai ΞŠ_Œω”zAand the joints between the stones are called meji –Ϊ’n.
@@
@

@
REFERENCES:
*ougi-no-koubai ξ‚ΜŒω”z, *terakoubai Ž›Œω”z
EXTERNAL LINKS:
@@
