hirahozo 平ほぞ | ||||||
KEY WORD : architecture / joints | ||||||
A true,
square or rectangular tenon cut from a single block of wood. The top of
the uncut part of the block forms the square shoulders around the base of
the tenon. A short tenon is called tanhozo 短ほぞ, and a long one is
called nagahozo 長ほぞ. These simple tenons fit into mortises *hozoana
ほぞ穴, cut in the corners of ground sills, wall plates, non-supporting beams
and other structural beams. The long tenon is used at the corner of the
ground sill to control shifting. An even better control for shifting is
a rabbeted mortise and tenon, called *konehozo
小根ほぞ. |
||||||

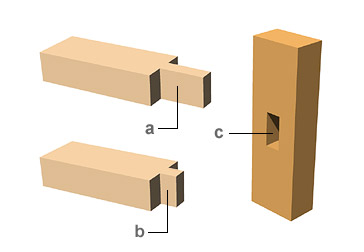

a) nagahozo 長ほぞ b) tanhozo 短ほぞ c) *hozoana ほぞ穴 |
||||||
REFERENCES: | ||||||
*juuhozo 重ほぞ | ||||||
EXTERNAL LINKS: | ||||||
NOTES: | ||||||
